Use method of flat washer and spring washer

  Flat washers and spring washers belong to the category of fasteners. Here's a detailed introduction to the use of flat pads and elastic pads. Please see the sharing below.

Method/Step

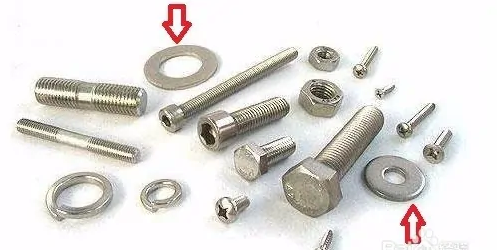

Introduction of flat washer

Firstly, the function and usage of flat washer are introduced, and it is used on bolts or screws. After adding flat washer, the contact area is increased, which can disperse the pressure and protect the surface of connected parts from being damaged.

Installation of flat washer:

The function of the flat pad is described above, so the flat pad should be next to the surface of the machine/workpiece during installation.

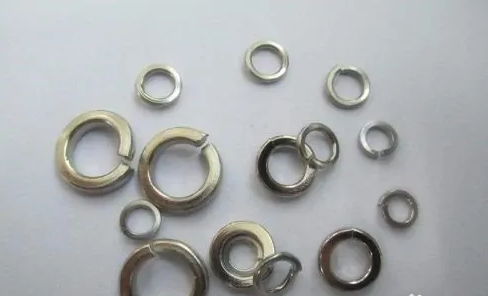

Introduction and installation of spring washer:

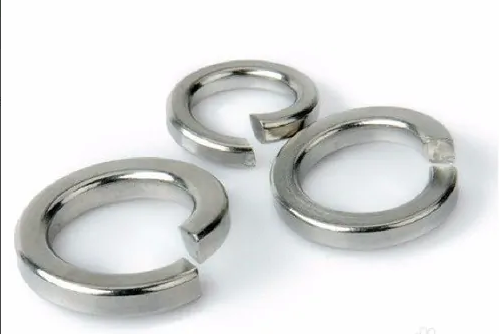

Spring washer is a kind of broken and uneven washer, which can prevent the nut from loosening, so the spring washer is next to the nut.

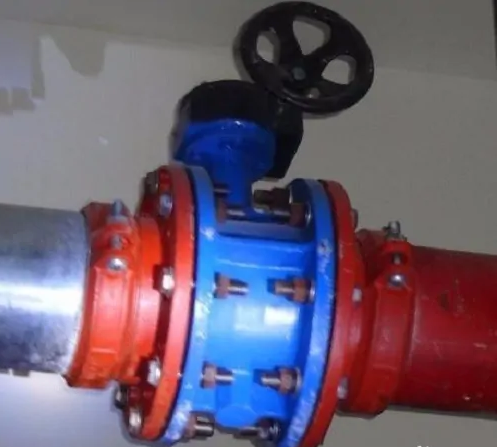

Working environment of elastic washer application:

The function of spring washer is introduced above, so it is not difficult to understand its working environment. It is mainly used in vibration environment to prevent nuts from loosening back.

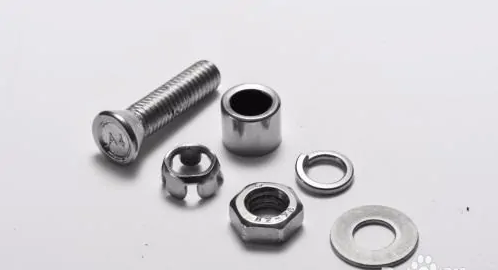

Application example 1:

When two workpieces need to be fixed by bolts, the bolts pass through the two workpieces from one workpiece surface, and then a flat pad is installed on the surface of the other workpiece, then the pad is bounced, and finally the nut is made.
